Mamod SP4

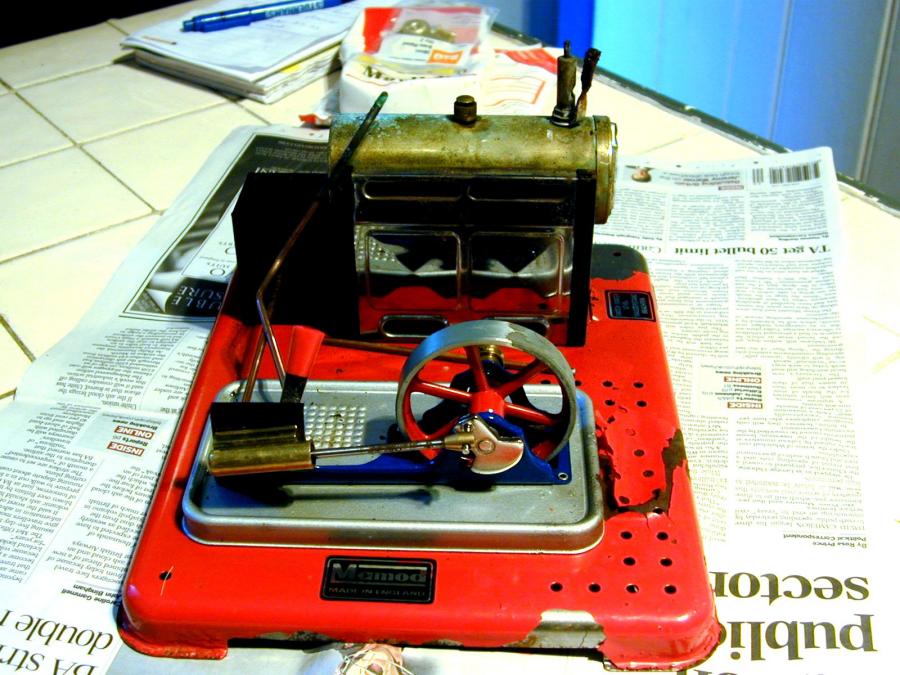

This is a Mamod SP4 from 1979 - 1995. This was bought off of ebay and is in an awfull state! All the pipes
are disconnected, the firebox, boiler & flywheel are badly corroded and it's missing the chimney and burner.

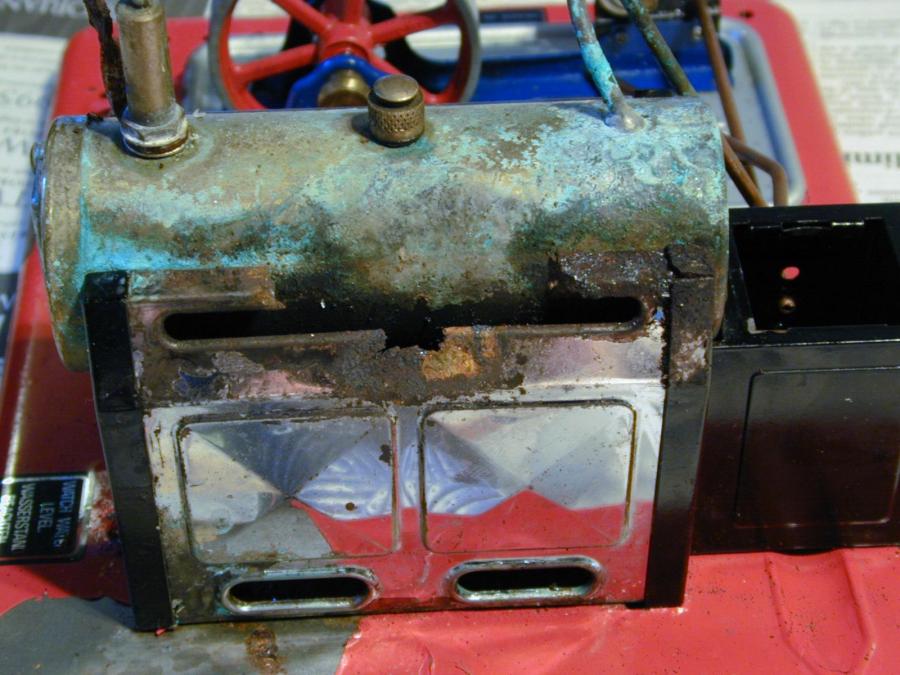

This image shows how bad the firebox and boiler actually are. This one is still 'in the shop' undergoing restoration
- more images to follow ......

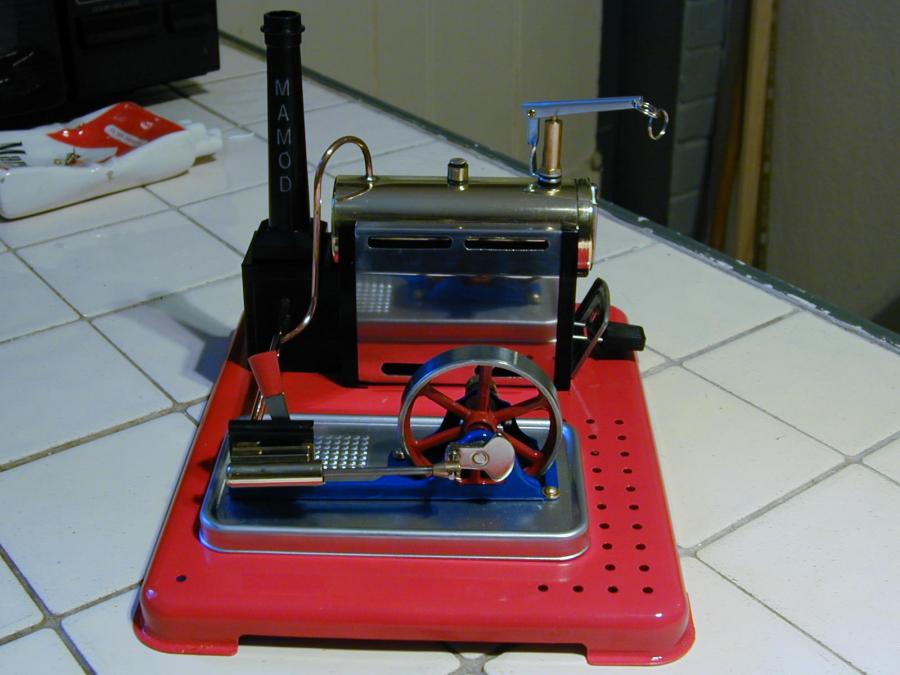

Here it is after restoration, the only new items are the whistle, chimney and burner.
The firebox has been fabricated from 1mm aluminium sheet.

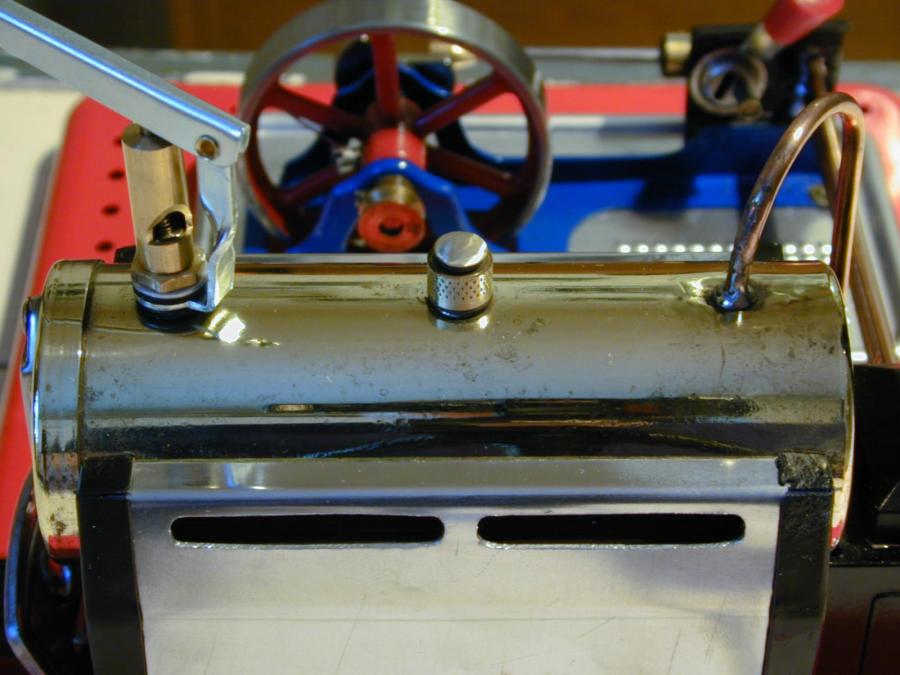

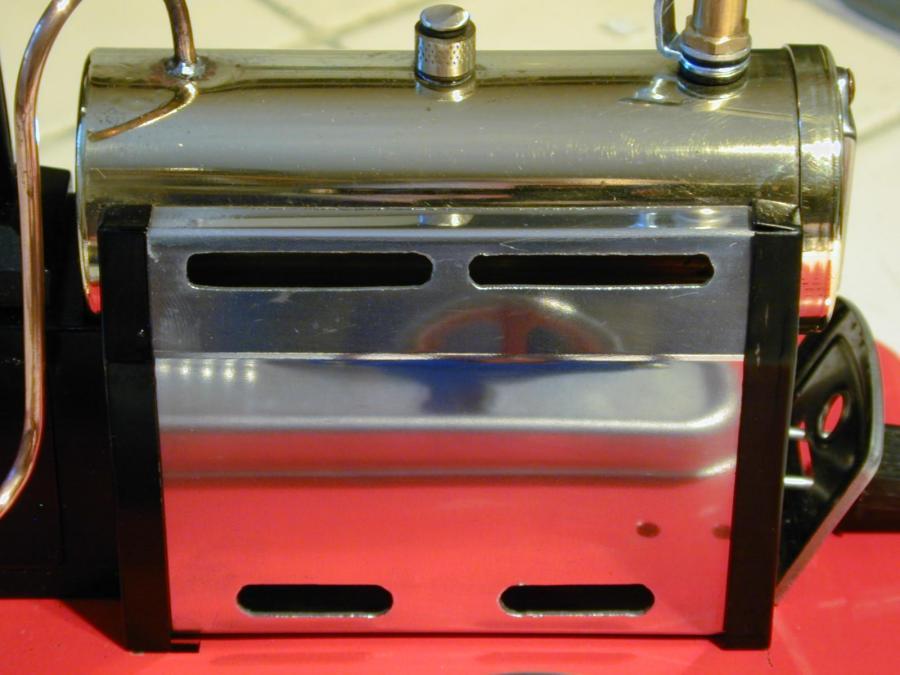

Close up of the side of the boiler & firebox that were really bad originally.

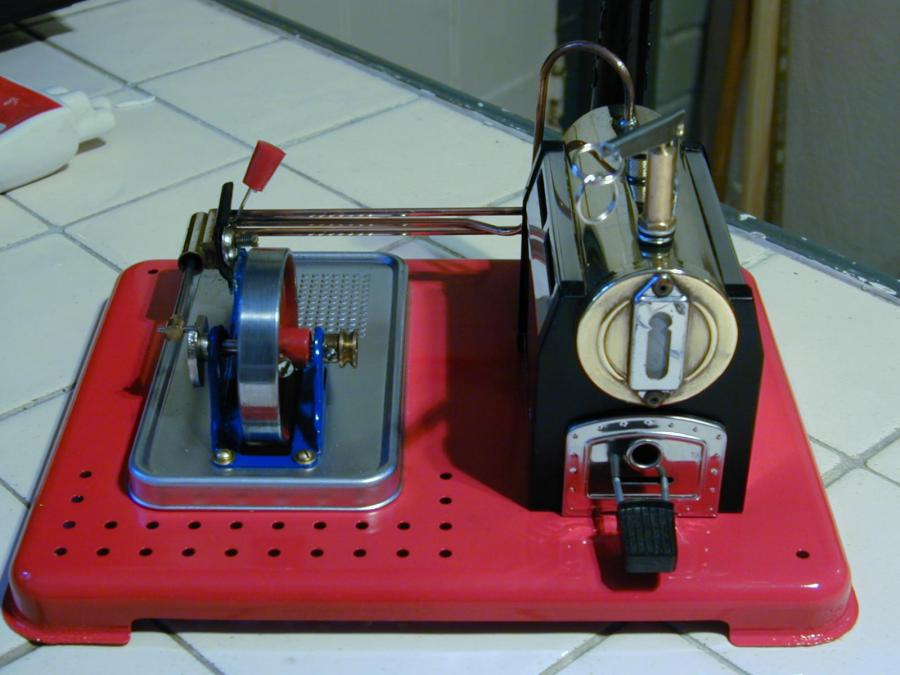

Here are a couple more pics.

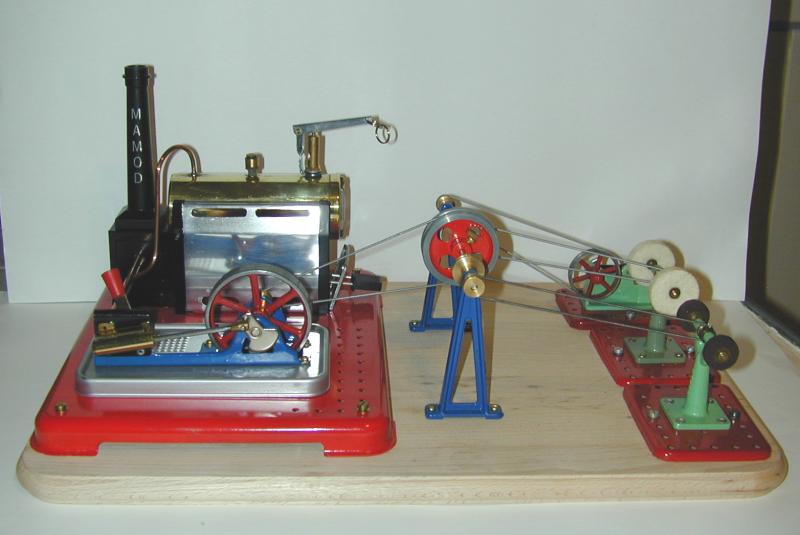

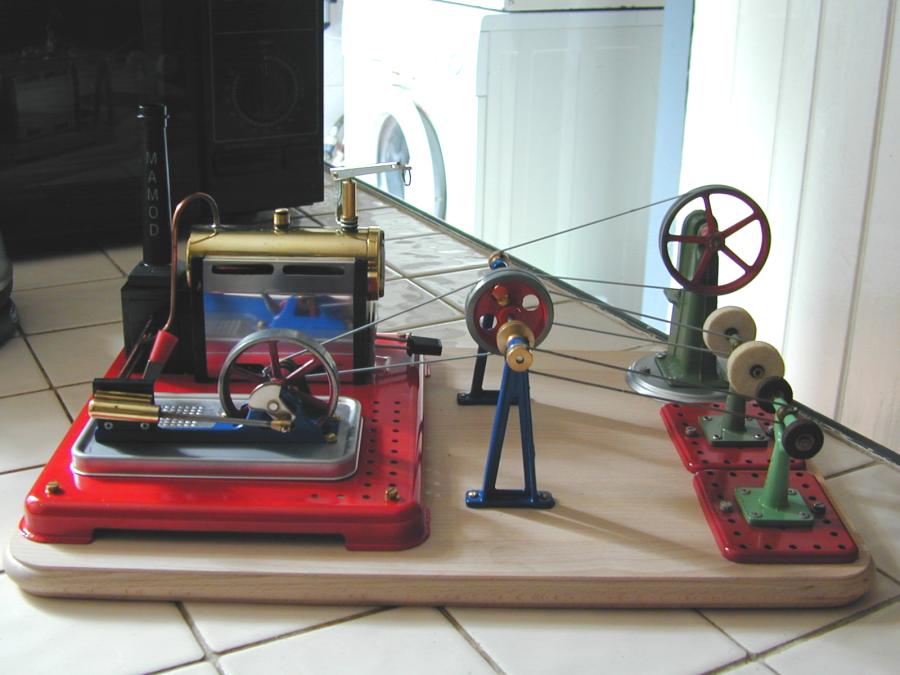

The SP4 with Lineshaft and tools. There is a video of it running here.
